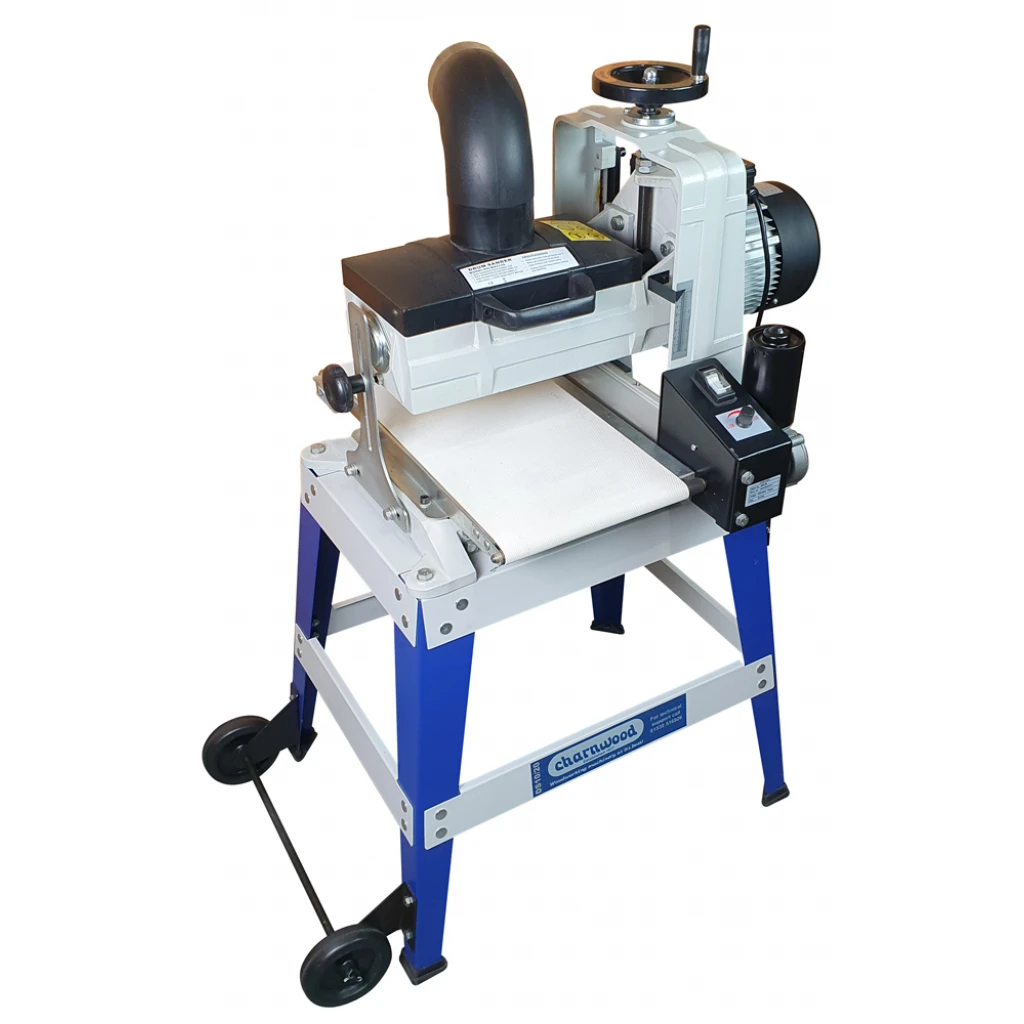

Charnwood DS10/20 Drum Sander 10″

Charnwood DS10/20 Drum Sander 10″

Charnwood DS10/20 Drum Sander 10″ Description

• 10″ Sanding Width in a Single Pass
• 20″ Sanding Width using 2 Passes
• Variable Speed Feed Conveyor
• Floor Stand Included
• Wheel Kit Included

We are offering 2 deals, the machine only of the Machine and accessories as the Package Deal.

Package Deal: Includes Accessories Worth £32.00

• DS10/20 Drum Sander 10″ Width Capacity
• 5 pre-cut sanding wraps in various grit sizes: 80g, 120g, 150g, 180g & 240g
• BC01 Belt Cleaner

FROM THE DROP DOWN MENU ABOVE CHOSSE THE VERSION REQUIRED.

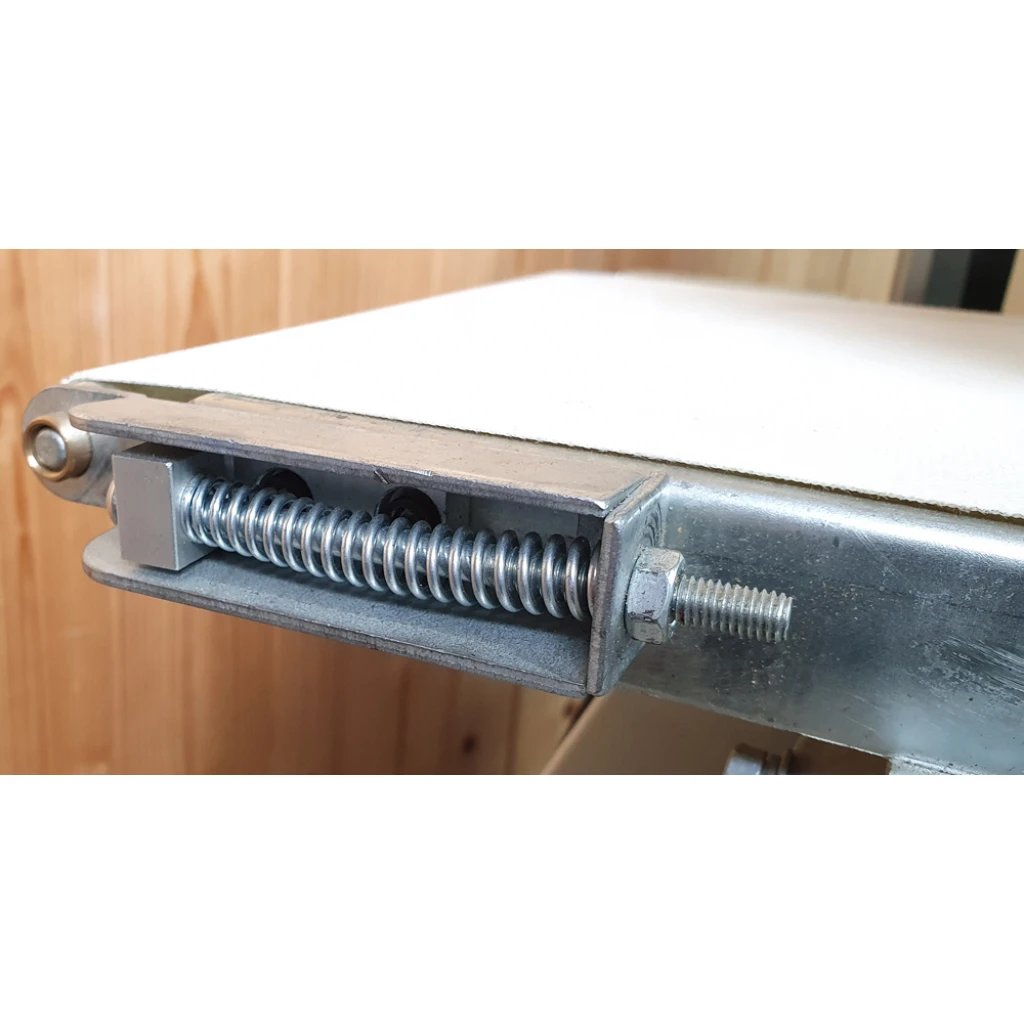

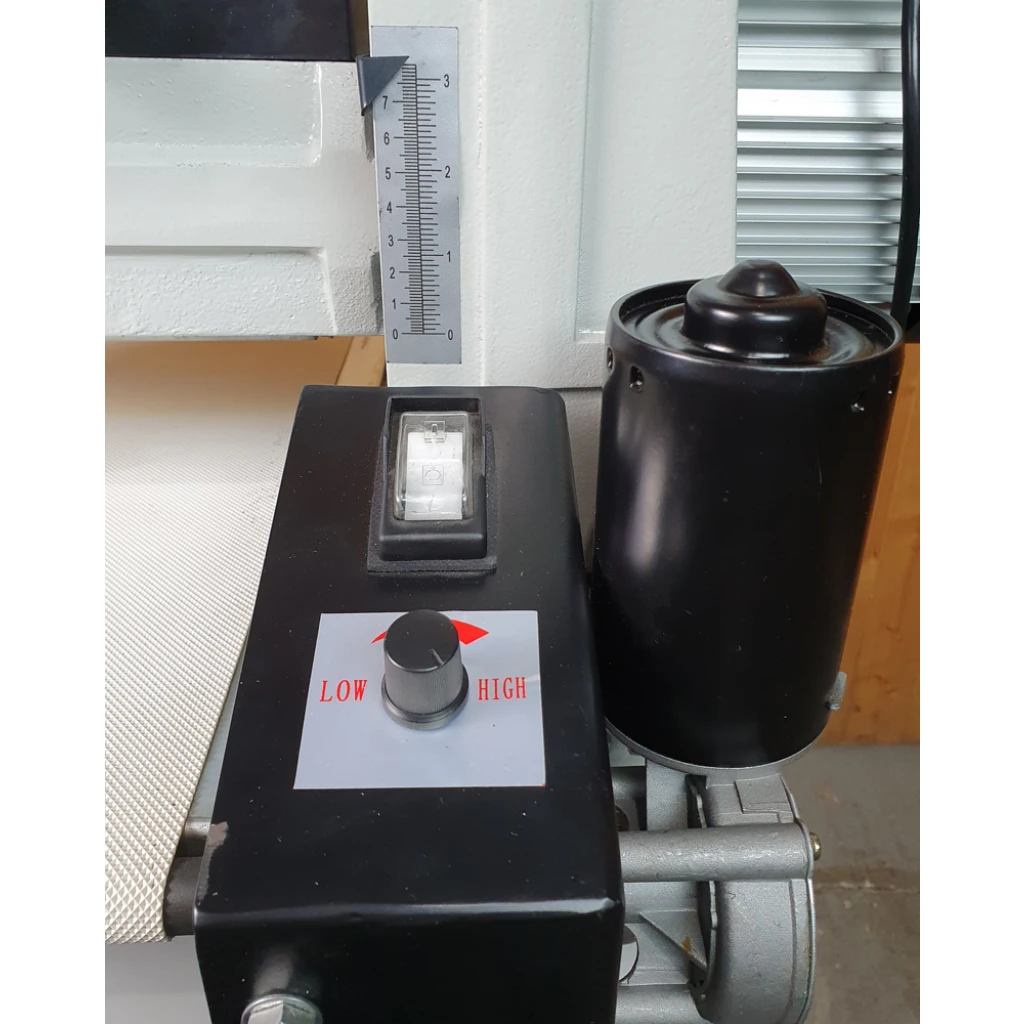

After planing timber, the Charnwood DS10/20 Drum Sander  can be used to complete the finishing process. The work piece is fed through the sander on a powered conveyor belt with a variable speed control to achieve an optimum finish on all timber types.

The single pass capacity of the machine is 250mm (10″). However, by removing the side plate (which is fitted with a quick removal mechanism) the work piece can be fed through the now open end of the sander giving a capacity of up to 500mm (20″) by making 2 passes.

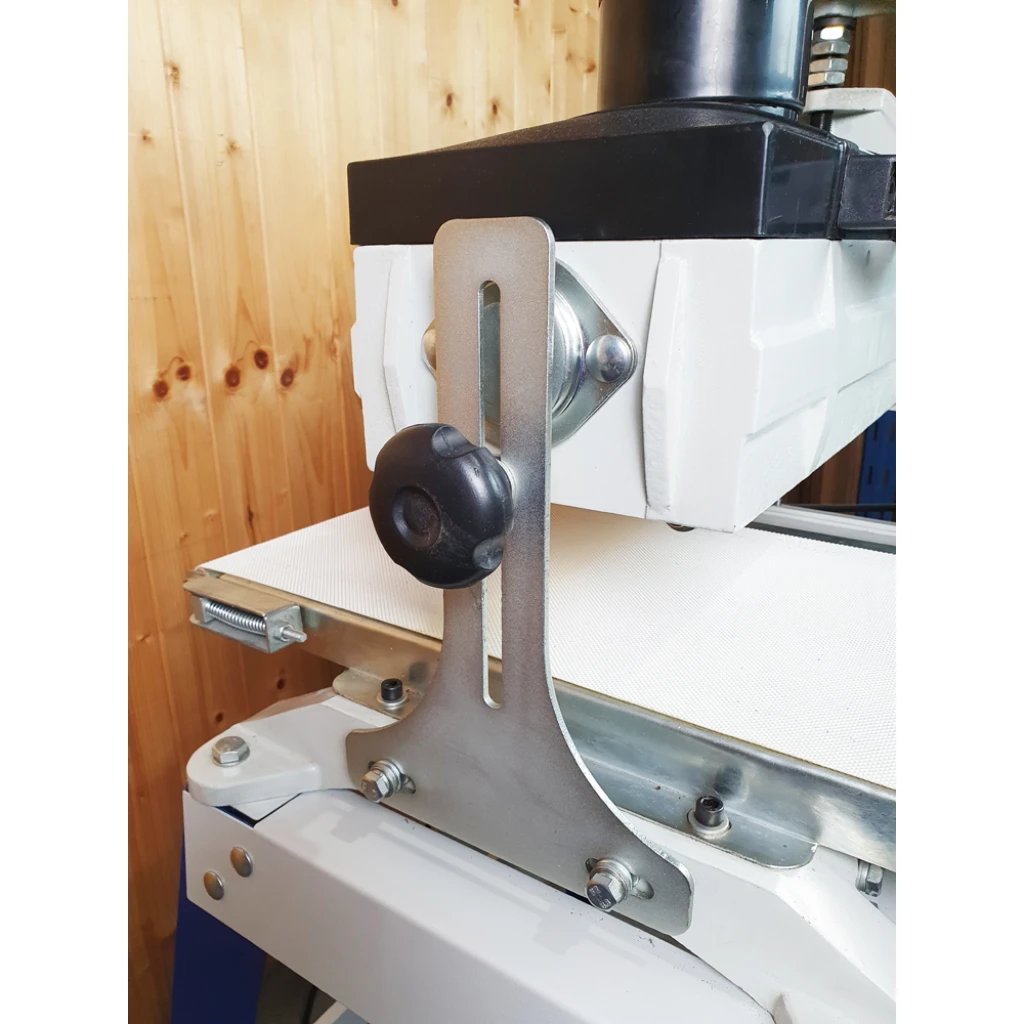

The height of the Charnwood DS10/20 Drum Sander is adjusted using a large hand wheel and the position read off the scale, which is graduated in both millimetres and inches.

Changing the sandpaper wrap is a simple task which requires no tools. The Charnwood DS10/20 Drum Sander sanding wraps are pre-cut with a taper at each which is clamped into each end of the drum. If you are using a sandpaper roll, you will need to make a template and cut the tapers before fitting.

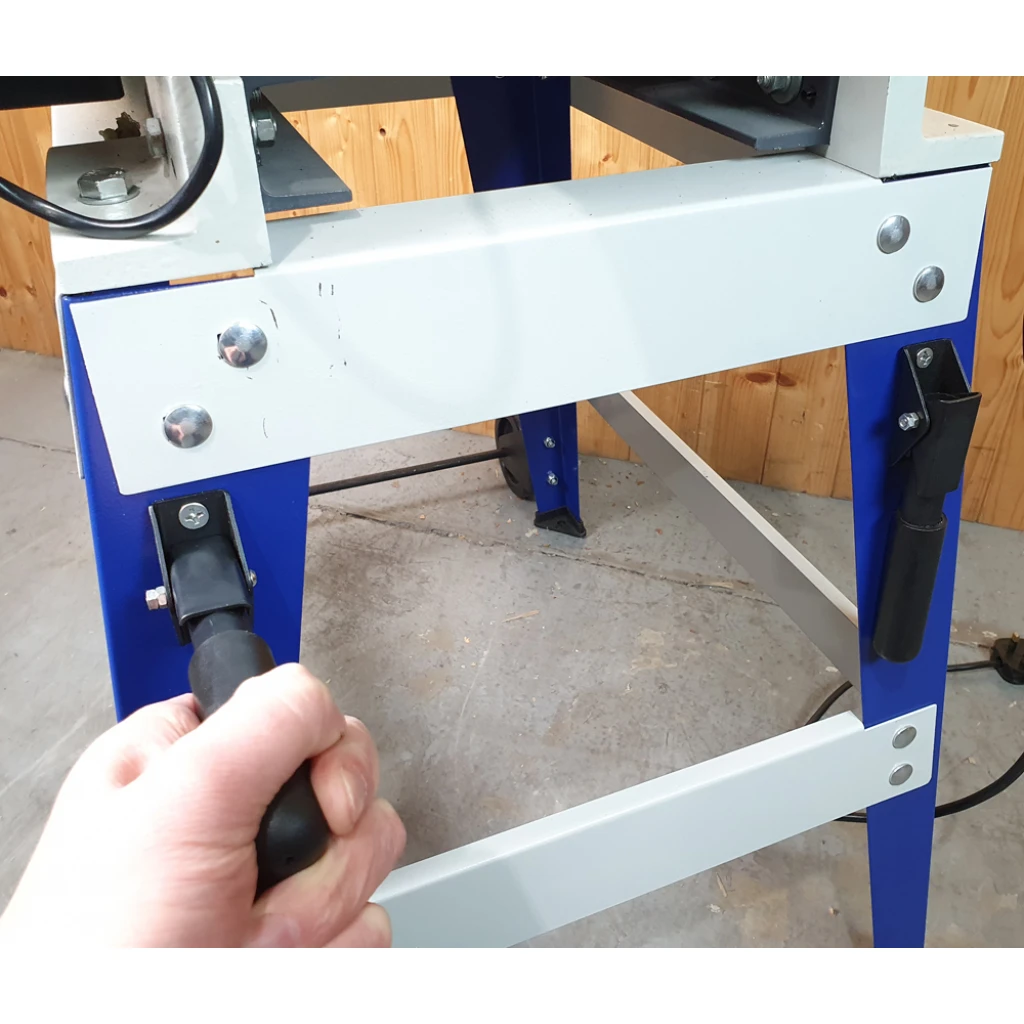

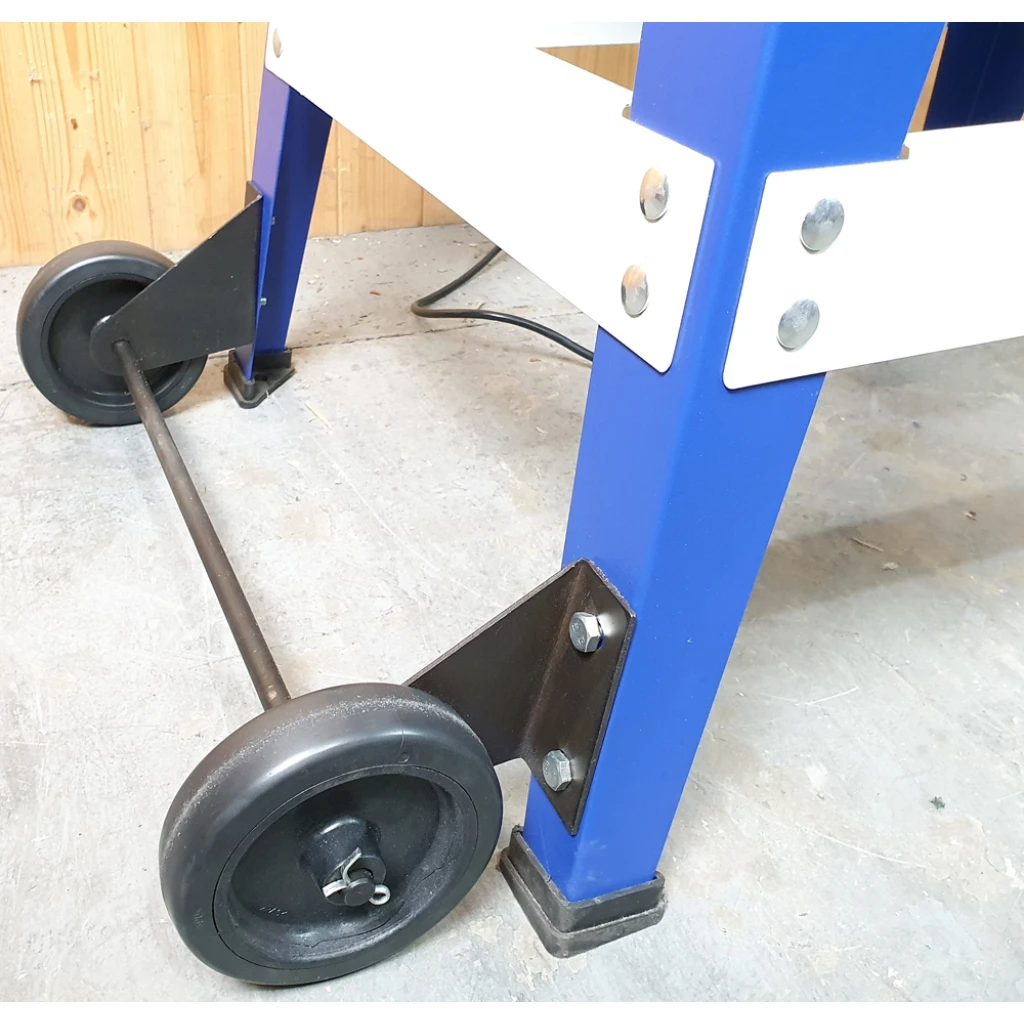

Mobility is no problem thanks to the wheels and lifting handles provided.

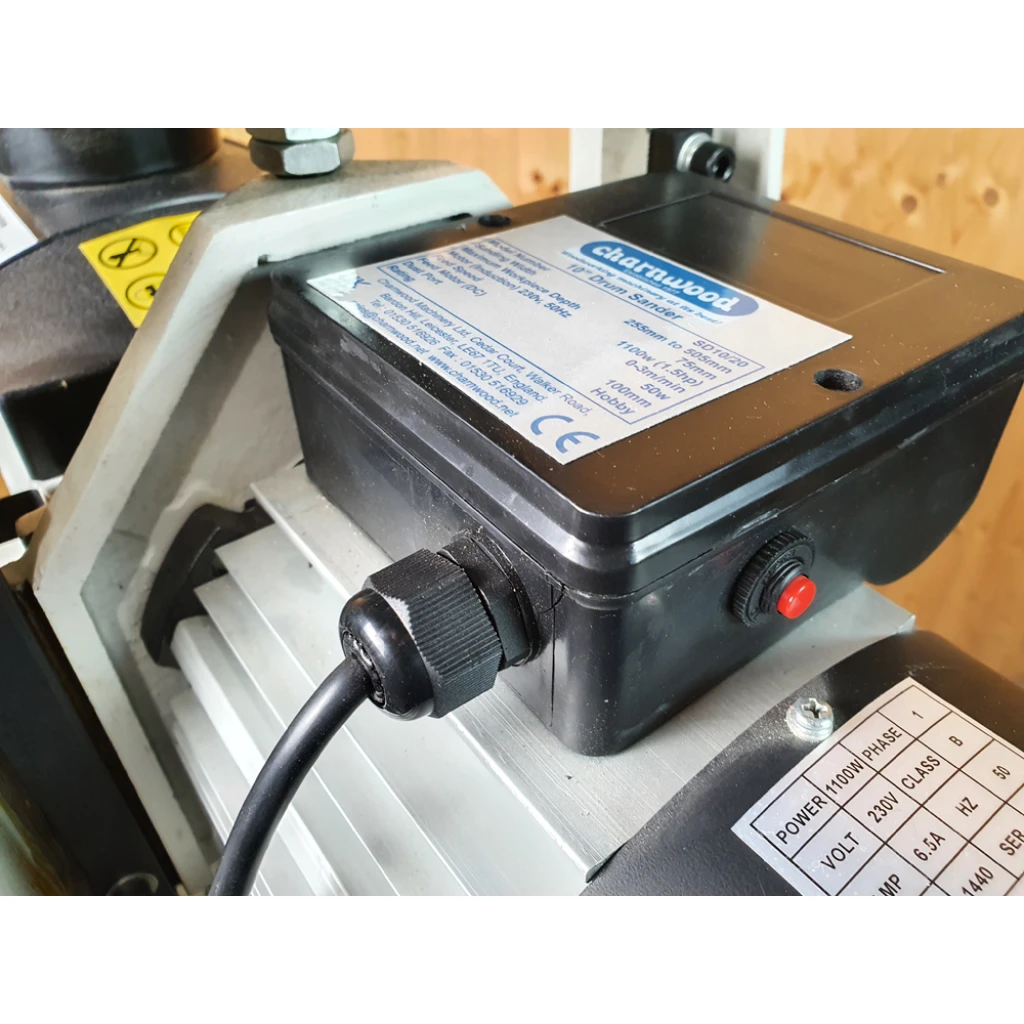

Supplied with a fitted 80 grit sanding wrap, floor stand, wheels & lifting handles, dust port elbow, 2.0m cable and UK 3 240V pin plug.

BC01 Sanding Disc, Belt & Sleeve Cleaner

Dramatically increase the life of sanding belts, discs & sleeves with this cleaning stick.

Removes clogged up pitch and sawdust when pressed lightly against a moving abrasive material.

Can be used on sanding discs, sanding belts and sanding drums.

Size 35mm x 35mm x 215mm
