Charnwood W629 10 inch Cast Iron Table Saw – W629

£639.99 excl. VAT (£767.99 incl. VAT if applicable)

SKU: W629 Categories: , ,

Description

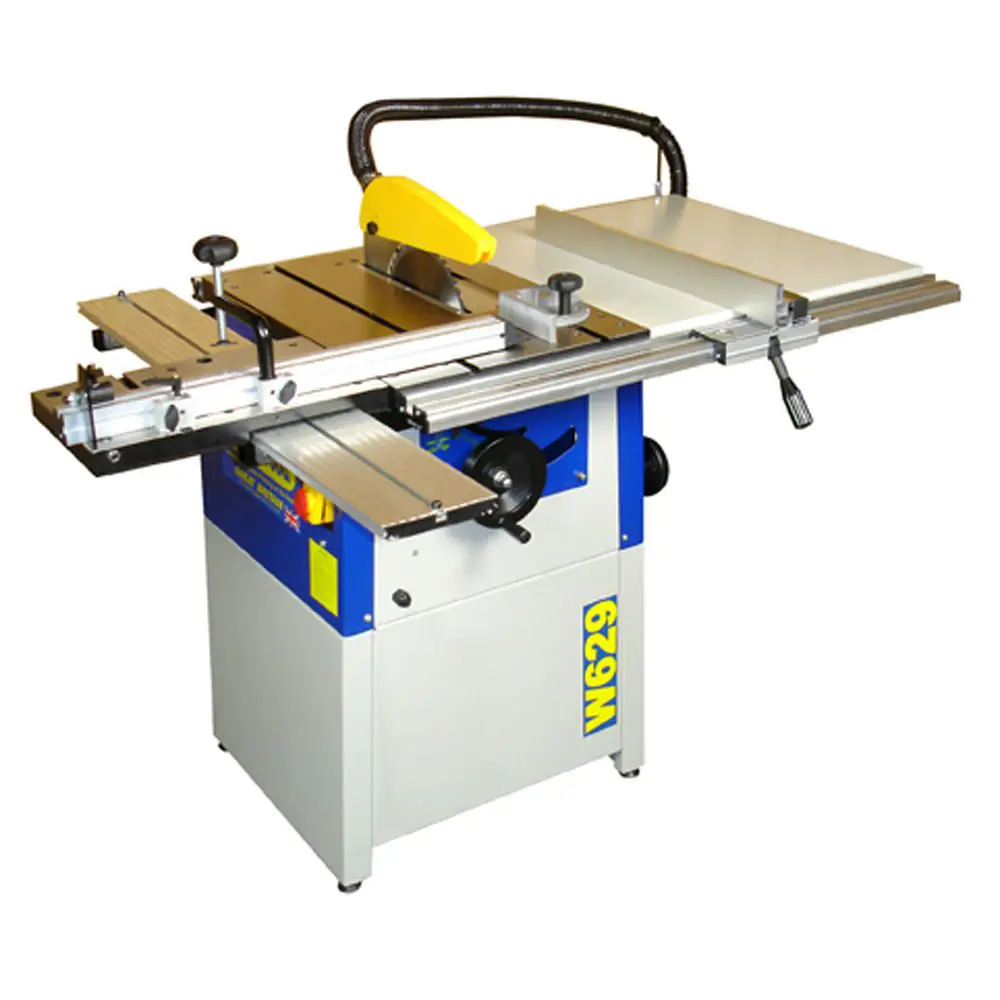

Charnwood W629 10 inch Cast Iron Table Saw

The Charnwood W629 10 inch Cast Iron Table Saw / Bench Saws is our best selling item and is perfect for any woodworking shop. Charnwood introduced the W629 in 2015 because of the success of the popular W619 8″ table saw.  Consequently the W629 also utilises the same overall operating specification but possess an enhanced 3HP motor and cutting depth therefore providing the user with greater versatility and ability. The  heavy weight of the the table saw makes it necessary for someone in attendance when it is delivered. Specifically built and specified for the home worker and small professional workshop W629 is consequently rated light trade. Furthermore maneuverability around the workshop a wheel base might prove a perfect addition. Consequently customers often purchase the W522 at the same time as the W629..

The Charnwood W629 10 inch Cast Iron Table Saw now comes with an upgraded quick action precision rip fence as standard. (The new rip fence is also available as an upgrade for Charnwood W629 purchased before Autumn 2017. The part reference is PSF.)

Professional workshop operators should also look at the W650. Built specifically  with the professional in mind it has enhanced cast iron components.



Key Features of the Charnwood 10 inch Cast Iron Table Saw :



  • Quiet Induction Motor
  • Cast Iron Precision Ground Table
  • Extension Tables as Standard Equipment
  • Sliding Carriage as Standard Equipment
  • Separate Handwheels for Blade Adjustment
  • 100mm Dust Extraction Outlet
  • Solid Floorstand Base Included
  • Supplied with 36 tooth TCT saw blade
  • adjustable feet
  • cable and plug

The main table is precision ground cast iron and also has 2 fabricated side extension tables to give impressive cutting capacities. The induction motor turns the blade via a drive belt which reduces noise and increases accuracy. Blade height and blade angle are controlled using 2 separate hand wheels. The sliding carriage, included as standard, is a joy to use with a cast iron bed travelling on 4 bearing guides. Any angle can be set on the long support fence. A screw clamp holds the work secure and a flip over length stop is fitted for repeat cuts.



What customer says



“I am really pleased with the machine. Build quality is good with fine adjustments usually only found on more expensive machines. Thank you .
Xxx Xxxxx  Carpenter & Joiner.”
  • Main Table Size 420mm x 635mm
    Table Size (with Extensions) 1000mm x 635mm
    Maximum Ripping Width Using Fence 720mm
    Crosscut Table Size 400mm x 180mm
    Maximum Crosscutting Width 500mm (680mm using reverse table)
    Blade Tilt 90 – 45 degrees
    Cutting Depth at 90 degrees 70mm
    Cutting Depth at 45 degrees 45mm
    Blade Diameter 250mm
    Blade Bore 30mm
    Work Table Height 870mm
    Motor (induction) 2200w (3hp) / 240v
    No-Load Blade Speed 4000 rpm
    Dimensions (WxDxH) 1480mm x 1000mm x 1100mm
    Weight 110Kg
    Rating Light Trade
    Warranty 1 Year
