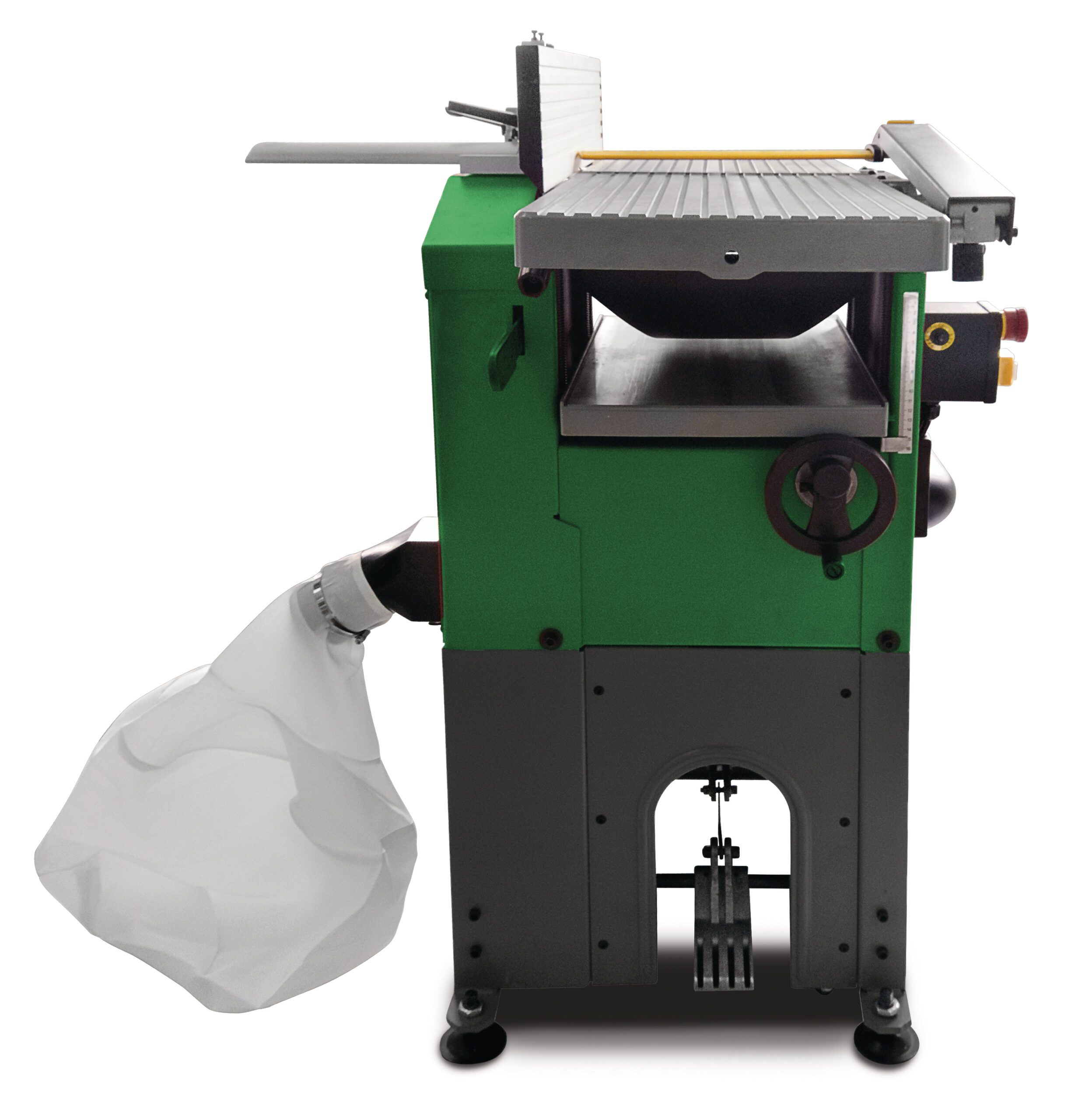

Holzstar ADH 2540 PLANER/THICKNESSER 230V
£1,074.99 excl. VAT (£1,289.99 incl. VAT if applicable)
TECHNICAL DATA FOR Holzstar ADH 2540 PLANER/THICKNESSER 230V
Dimensions and weights
Length (product) approx. 1105mm
Width/depth (product) approx. 750mm
Height (product) approx. 1075mm
Net weight approx. 87kg
Jointing
Total length of table 1050mm
Infeed table length 510mm
Infeed table width 260mm
Working height 920mm
Max. cutting depth of joints 3mm
Planing stop length 635mm
Planing stop height 127mm
Planing stop pivoting range 90 – 45°
Extraction port
Suction hood connection diameter 75mm
Suction unit connection diameter 75mm
Footprint
Machine body length 450mm
Machine body width/length 420mm
Thickness
Thicknessing table length 480mm
Thicknessing table width 254mm
Working height min. thickness 6mm
Working height max. thickness 160mm
Working length min. thickness 250mm
Max. cutting depth thickness 2mm
Electrical Data
Duty type drive motor S1
Drive motor output 1,2kW
Absorbed power drive motor 1,8kW
Supply voltage 230V
Mains frequency 50Hz
Noise emission
Sound pressure level Lp 81dB(A)
Sound power level Lw 93dB(A)
Planing knife shaft
Planing shaft type Strip planer blade shaft
Planing shaft diameter 62mm
Number of planing blades 2St
Planing shaft speed 6700min¯¹
Max. planing width 254mm
Feed
Feed speed 8.5m/min
Holzstar ADH 2540 PLANER/THICKNESSER 230V
Holzstar ADH 2540 PLANER/THICKNESSER 230V key features:
- For angular joining (90°) and precise planing of solid wood boards and moldings
- Automatic workpiece feed
- Rubberized extraction roller protects the wood surface when planing thick
- Suction integrated in the substructure
- With chassis as standard
- Simple and precise adjustment of the chip removal
- Dressing table made of milled cast aluminum
- Space-saving compact design
To find out more about the brand, see their website here.
| Area of use | Woodworking |
|---|---|
| Purpose | Planing, Thicknessing |
| Voltage | 240v |
