Holzstar UMK6 Universal Woodworker Combination Machine with Stand 1000w 240v

Holzstar UMK6 Universal Woodworker Combination Machine with Stand 1000w 240v

The Holzstar UMK6 Universal Woodworker is a versatile entry-level combination woodworking machine that combines sawing, milling, planing, thicknessing, and slot mortising in one compact unit. Ideal for hobbyists and small workshops, it delivers precision, flexibility, and efficiency in the smallest of spaces.

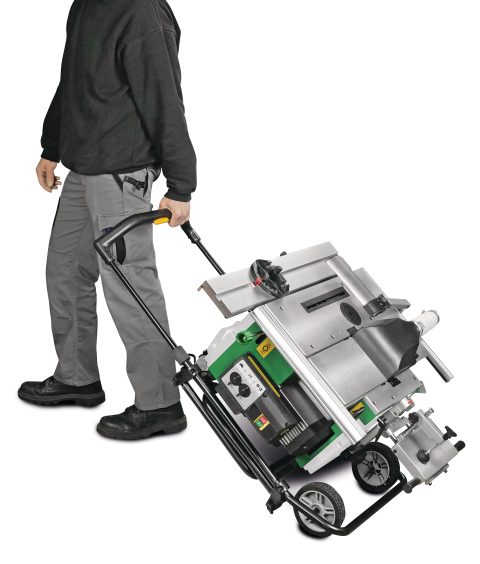

It also comes with a stand and wheels that makes it even more practical to use.

Introducing the Holzstar UMK6 Universal Woodworker – the ultimate entry-level combination woodworking machine designed for hobbyists and small workshops. This compact powerhouse seamlessly integrates sawing, milling, planing, thicknessing, and slot mortising, delivering precision and efficiency without taking up valuable workspace.

Featuring a precision 2-blade planer shaft equipped with high-speed steel (HSS) blades, the UMK 6 ensures smooth and accurate finishes on every project. The aluminum sliding carriage, complete with a mitre fence, allows for effortless maneuvering and precise cuts. The practical slot drilling device, paired with a workpiece clamp, enhances your ability to create intricate designs with ease.

Two extraction ports facilitate effective dust removal, keeping your workspace clean and safe while you work. With an easy saw blade height adjustment, you can quickly switch between tasks, maximizing your productivity. Plus, the mobile frame makes it simple to reposition the machine as needed, ensuring versatility in your workshop.

Elevate your woodworking experience with the Holzstar UMK 6 – where innovation meets convenience, allowing you to bring your creative visions to life.

Key features of the Holzstar UMK6 Universal Woodworker Combination Machine with Stand

• Precision 2-blade planer shaft with HSS blades

• Aluminum sliding carriage with mitre fence

• Compact, space-saving design with multiple applications

• Practical slot drilling device with workpiece clamp

• Two extraction ports for effective dust removal

• Quick and easy saw blade height adjustment

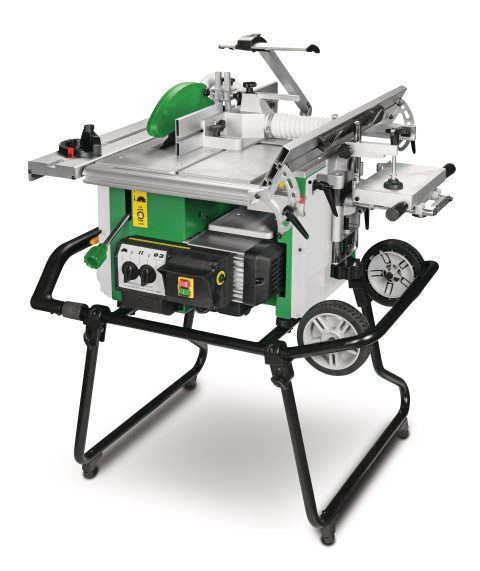

• Supplied with practical machine base and chassis for mobility and working height

• 1000w 240Vmotor.

What’s In the Holzstar UMK6 Universal Woodworker box?

• 2-blade planer shaft with HSS blades (set of 2)
• Saw blade 200 x 30 x 2.6 mm, Z20
• Aluminum sliding carriage for saw and router
• Multifunction fence for parallel cutting and planing
• Mitre fence

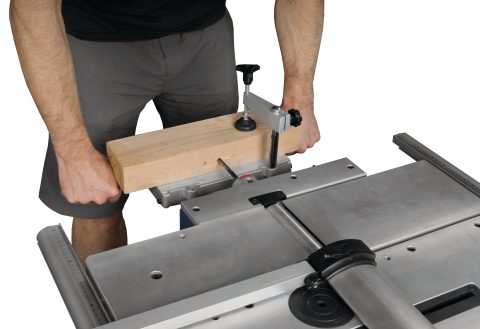

• Slot drilling device with clamping arm
• Workpiece pusher

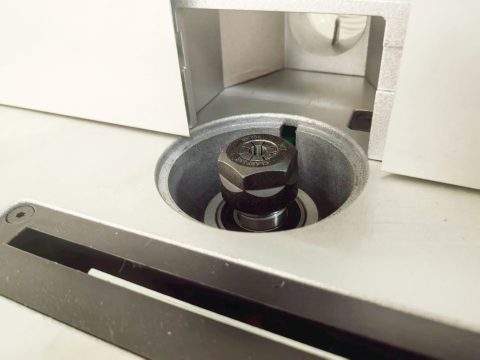

• ER20 collets 6 mm & 8 mm
• Clamping sleeves 6, 8, 10 mm
• Practical machine base with chassis

Technical Details Holzstar UMK6 Universal Woodworker

Technical Specifications

Dimensions and Weights

• Length: 880 mm
• Width/Depth: 835 mm
• Height: 490 mm
• Net weight: 49 kg

Jointing

• Infeed table: 154 x 620 mm
• Max. cutting depth: 1.5 mm

Extraction Ports

• Saw blade guard: 30 mm
• Thicknesser: 50 mm
• Main port: 60 mm

Thicknessing

• Table size: 320 x 154 mm
• Working height: 9 – 92 mm
• Max. cutting depth: 1 mm

Electrical Data

• Motor output: 1.0 kW
• Supply voltage: 230 V
• Frequency: 50 Hz

Sliding Carriage and Table

• Sliding table: 740 x 120 mm
• Table size: 620 x 300 mm

Milling Spindle

• Speed: 9000 min⁻¹
• Shaft diameter holder: 6 / 8 mm

Planing Shaft

• Diameter: 48 mm
• Number of blades: 2
• Speed: 6000 min⁻¹

Circular Saw Unit

• Max. cutting height (90°): 65 mm
• Saw blade: Ø200 mm
• Saw speed: 4200 min⁻¹
• Trimming length: 500 mm
• Feed
• Feed speed: 7 m/min
• Feed shaft diameter: 20 mm

Slot Mortising Unit

• Table size: 260 x 125 mm
• Vertical stroke: 95 mm
• Drill depth: 60 mm
• Longitudinal stroke: 45 mm
• Shaft holder diameters: 6 / 8 / 10 mm

Find out more about the brand click to their website here.

We can supply anything from Holzstar even if not listed here
