SIP 08265 VSDD 11kW 10bar 500ltr 400v Rotary Screw Compressor
£3,611.99 excl. VAT (£4,334.39 incl. VAT if applicable)
Technical Information
| ITEM NO. | SIP 08265 |
| Input Supply | 400v (64A) |
| Rated Input: | 14kW |
| Motor Power: | 11kW (15hp) |
| IE4 Motor: | Yes |
| Max. Pressure: | 145psi (10bar) |
| Free Air Delivery (FAD): | 50CFM (1415ltr/min) |
| Receiver Size: | 500ltr |
| Cooling Type: | Fan Cooled |
| Transmission Type: | Direct Drive |
| Start-Up Mode: | Inverter Soft Start |
| Refrigerated Dryer: | N/A |
| Outlet Connector: | 3/4″ BSPP |
| Noise Level: | 62dB(A) |
| Net Weight: | 445.00kg |
| Gross Weight: | |
| Product Dimensions: | 1750(H) x 820(W) x 1880mm(D) |
5 in stock
SIP 08265 VSDD 11kW 10bar 500ltr 400v Rotary Screw Compressor
The SIP 08265 VSDD 11kW 10bar 500ltr 400v Rotary Screw Compressor is a variable speed, direct drive rotary screw compressor. This 4th generation compressor is designed for continuous use or where multiple operators require compressed air at one time.
With a motor output of 11kW, this compressor can meet high-demand air requirements and optimise energy usage. Fitted with a 500ltr receiver tank.
KEY FEATURES of the SIP 08265 VSDD 11kW 10bar 500ltr 400v Rotary Screw Compressor
- Direct drive transmission for improved power transfer
- Variable speed 11kW motor delivers even power distribution
- Heavy-duty silenced cabinet ensures reduced noise operation
- Colour touchscreen for real-time diagnostic information
- Easy access cabinet panel for maintenance and service
- All-in-one design minimises lost work area space
SIP 2-Year Standard Silver Warranty* |Â Find out more
Full Specification SIP 08265 VSDD 11kW 10bar 500ltr 400v Rotary Screw Compressor
The SIP VSDD 11kW 10bar 500ltr 400v Rotary Screw Compressor is a variable speed, direct drive rotary screw compressor. This 4th generation compressor is designed for continuous use or where multiple operators require compressed air at one time.
With a motor output of 11kW, this compressor can meet high-demand air requirements and optimise energy usage. Fitted with a 500ltr receiver tank.
Applications & uses:Â Ideal for medium to large workshops. Suitable for spray shops and automotive settings, plus industrial, engineering and agricultural environments.
SIP 2-Year Standard Silver Warranty* |Â Find out more
DIRECT DRIVE TRANSMISSION FOR IMPROVED POWER TRANSFER
- Precision-engineered twin parallel rotary screws deliver an efficient positive drive transmission.
- This negates slippage for greater power transfer and machine reliability compared to belt-driven compressors.
- It also reduces machine maintenance, component stress and lowers power consumption and energy costs.
VARIABLE SPEED 11KW MOTOR DELIVERS EVEN POWER DISTRIBUTION
- The inverter motor control enables automated soft-start and slope-down functionality.
- This ensures even torque distribution when powering up and controlled load descent once the receiver has reached the required air volume.
- The on-demand air production created adjusts to vary the amount of air delivered for greater versatility.
- These automated functions help to reduce machine wear and support long life use.
- Fitted with an IE4 motor for greater efficiency and lower energy costs.
SILENCED CABINET ENSURES REDUCED NOISE OPERATION
- Heavy-duty silenced cabinet minimises vibration and operates at reduced noise levels.
500LTR AIR RECEIVER SUPPORTS HIGH AIR CONSUMPTION
- Designed to safely store high volume compressed air, helping to ensure a stable flow and meet pressure peaks when in operation.

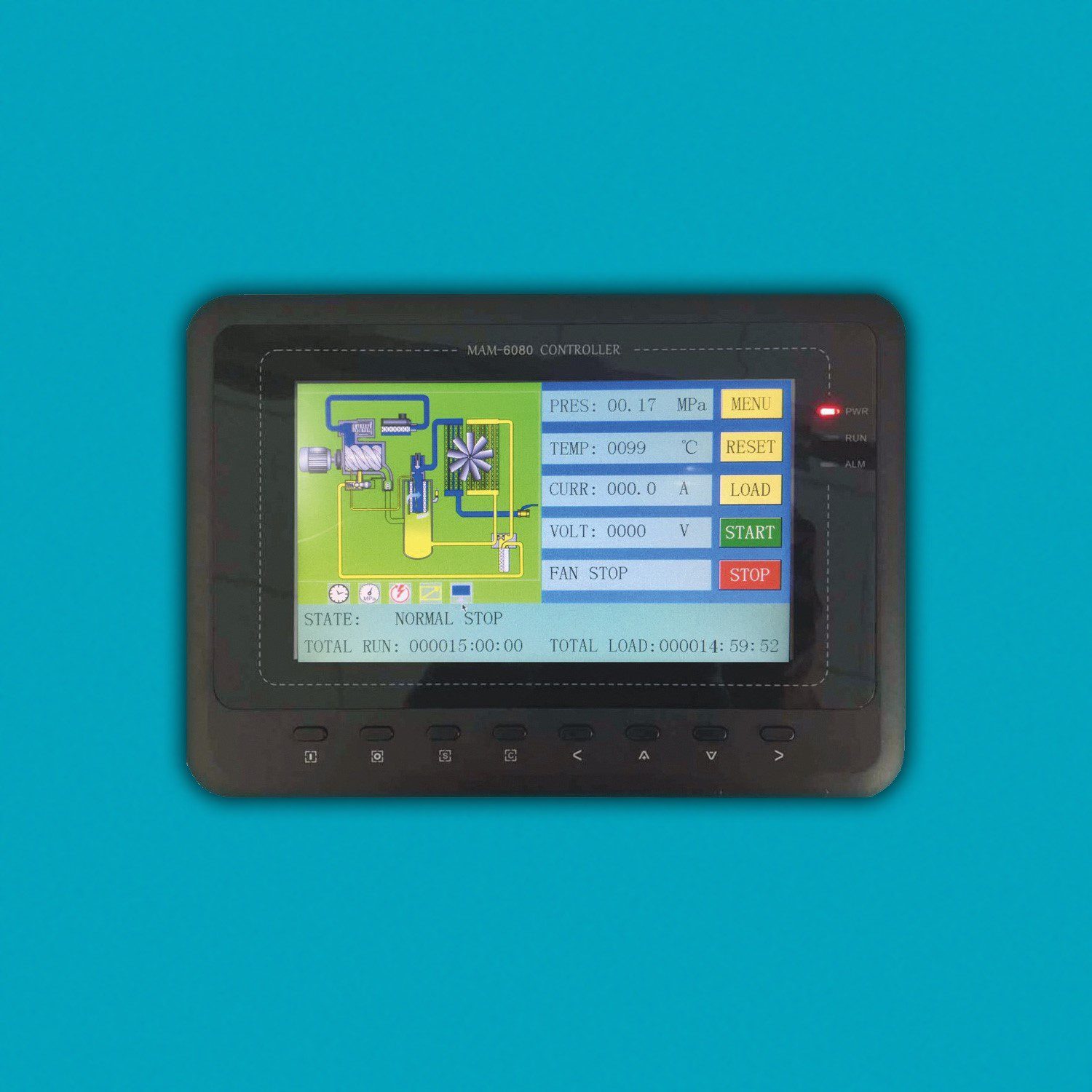

REAL-TIME DIAGNOSTIC COLOUR DISPLAY
- An intuitive colour touchscreen display provides real-time diagnostic information on the status of the compressor.
- Includes operation and load status, receiver pressure, motor voltage and internal temperature.
EASY ACCESS CABINET FOR MAINTENANCE & SERVICE
- All critical machine components are fully accessible through a single access cabinet panel, helping to reduce air production downtime.
- A service should be performed annually or after every 2000 loading hours.
- The compressor should perform a minimum of 1000 loading hours annually.
ALL-IN-ONE MACHINE DESIGN MINIMISES LOST WORK AREA SPACE
- The compact all-in-one design ensures a smaller overall footprint which helps to minimise lost work area space once the compressor is installed.
 This unit requires a Site Survey Self Assessment form to be filled in prior to order acceptance. Please download and return to sales@sip-group.com.
| Brand | SIP |
|---|
