Stuermer Holzstar BKS 501 500mm HD Construction site sawbench 415V

Technical Information for Stuermer Holzstar BKS 501 500mm HD Construction site sawbench 415V

Circular saw unit
Max. cutting height 90°150 mm
(Main) saw blade diameter500 mm
(Main) saw blade speed2800 min¯¹



Dimensions and weights
Length approx.1870 mm
Width/depth approx.810 mm
Height approx.1170 mm
Weight approx.103 kg



Electrical Data
Absorbed power drive motor4.2 kW
Efficiency class drive motorIE3
Supply voltage400 V
Mains frequency50 Hz



Extraction port
Extraction port diameter bottom95 mm
Saw blade protection extraction port diameter50 mm



Sliding carriage and table
Table length1000 mm
Table width660 mm
Work height850 mm



VPE1



SKU: 5740050 Categories: , ,
Description

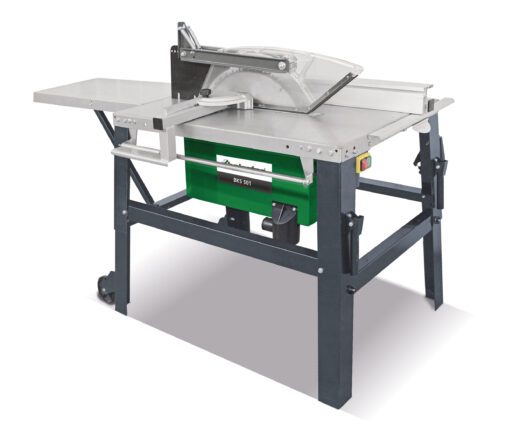

Stuermer Holzstar BKS 501 500mm HD Construction site sawbench 415V



Stuermer Holzstar BKS 501 500mm HD Construction site sawbench 415V has 150mm max depth of cut + 500mm dia TCT sawblade (44T) + foldaway X/Cut & mitre fence assa + folding tablelength extension + transport wheels & lifting handles + 4200W motor 415v

  • Transparent protective hood for the safety of the user and for an optimal view of the cutting line
  • Angle adjustable cross cutting device with wedge cutting gauge on rod ?guided by maintenance-free slide bearings
  • aluminium parallel fence with high and flat contact edge and eccentric clampingfacilitates the trimming of boards, rip cuts, bevel and angle cuts
  • Folding table extension for long workpieces
  • Easy to move due to integrated running gear and folding transport handles

Equipment:

  • Pendulum safety guard, transparent
  • Angle-adjustable cross-cutting device with wedge cutting gauge, fold-down
  • Aluminium parallel fence with high and flat contact edge
  • Table extension (800 x 400 mm), fold-down
  • Large crane eyelets
  • Phase inverter
  • Brackets for aluminium parallel fence and mounting tool
Additional information
Area of useConstruction
PurposeSawing
Voltage
