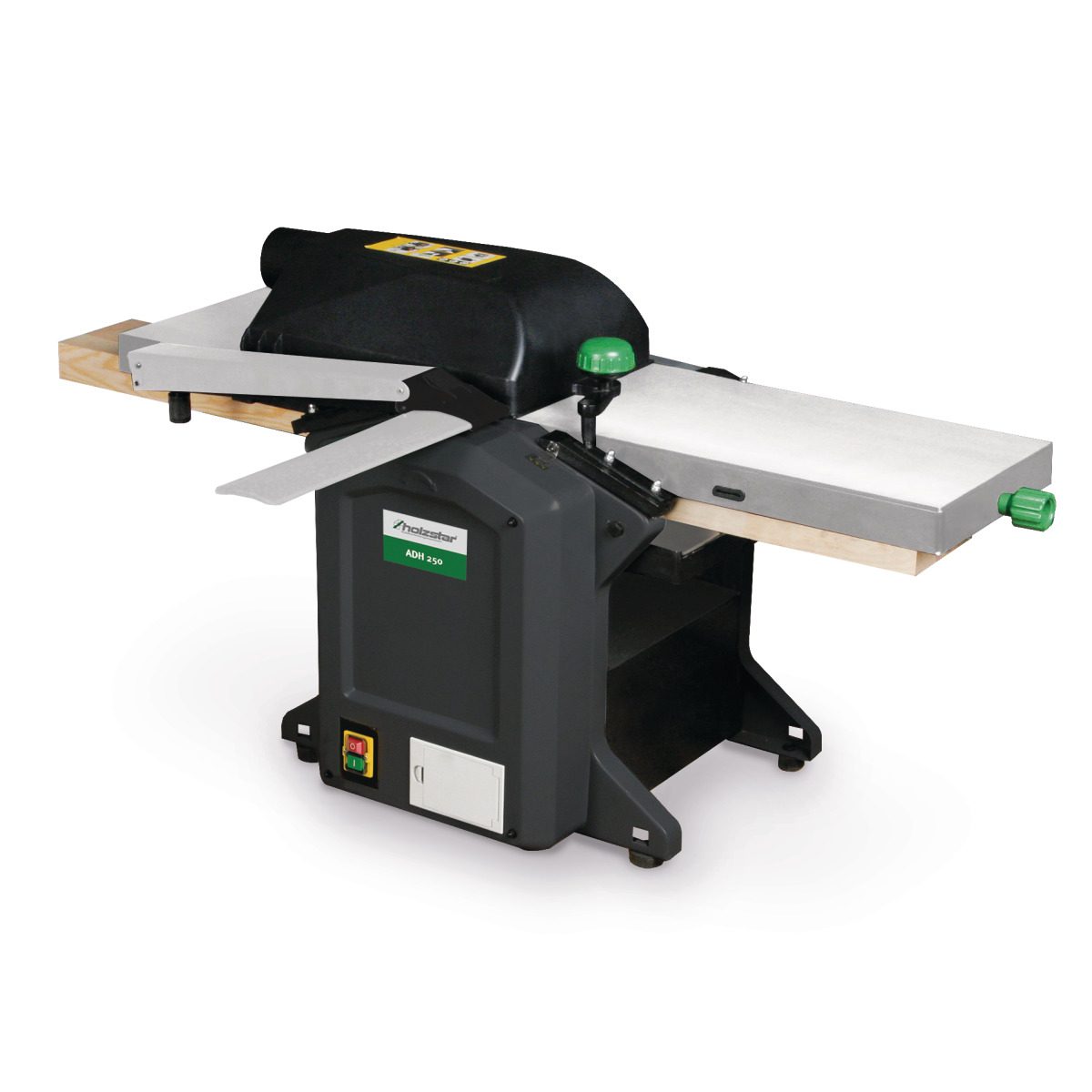

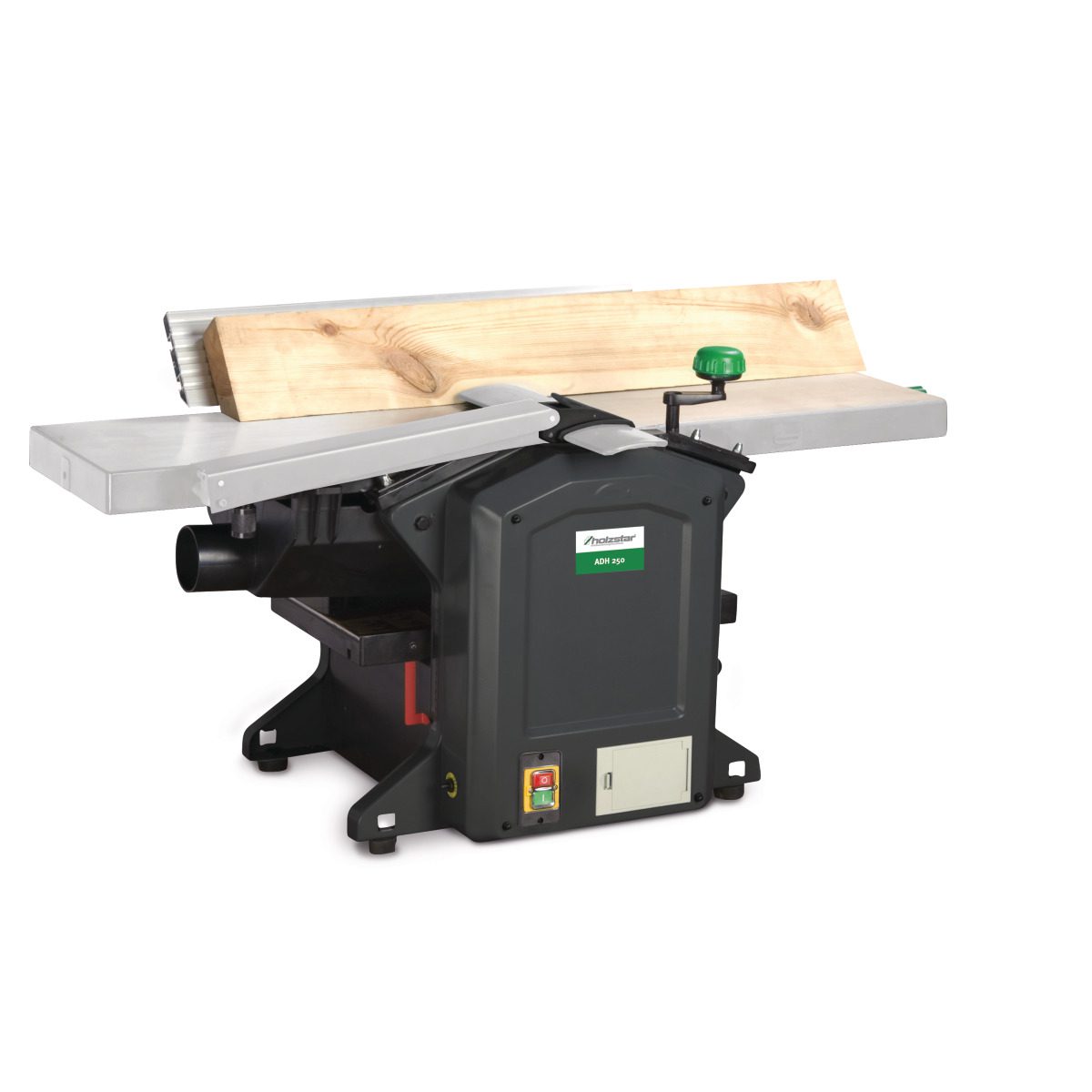

Holzstar ADH 250 Surface and thickness planer
Technical Details for Holzstar ADH 250 Surface and thickness planer
| Dimensions and weights | |
| Length approx. | 1105 mm |
| Width/depth approx. | 550 mm |
| Height approx. | 570 mm |
| Weight approx. | 40 kg |
| Electrical Data | |
| Drive motor output | 1,5 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Extraction port | |
| Extraction port diameter thickness | 80 mm |
| Feed | |
| Speed | 7 m/min |
| Jointing | |
| Max. cutting depth | 2 mm |
| Planing stop pivoting range | 90 – 45 ° |
| Planing knife shaft | |
| Type | Strip planer blade shaft |
| Number of planing blades | 2 St |
| Speed | 8500 min¯¹ |
| Max. planing width | 254 mm |
| Thickness | |
| Working height min. | 6 mm |
| Working height max. | 160 mm |
Description
Holzstar ADH 250 Surface and thickness planer
Holzstar ADH 250 Surface and thickness planer key features:
- Ideal for mobile use thanks to small and compact design
- For angle joints (90?) and precise surface planing of solid wood boards, planks and slats
- Easy and precise adjustment of chip removal in precision thicknessing of up to 2 mm
- Rubberised discharge roller is gentle on the surface in thicknessing operations

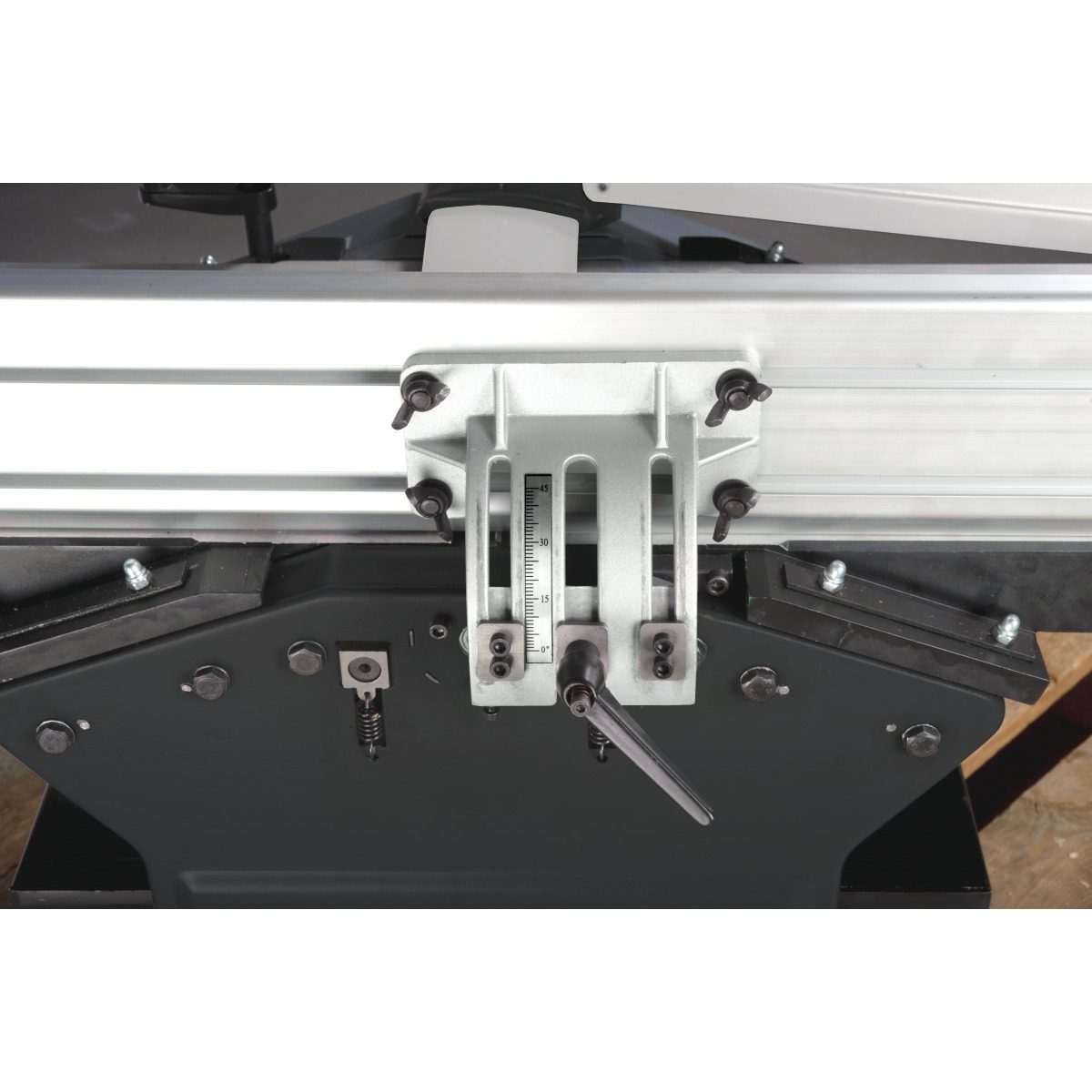

- Infinitely pivoting aluminium jointing stop from 90 to +45?
- Jointing and thicknessing table made of cast iron and milled cast aluminium
- Blade shaft with 2 HSS planing knives
- Powerful 230 volt, 1.5 kW motor
- Pluggable chip extraction hood
To find out more about the brand, see their website here
Additional information
| Area of use | Woodworking |
|---|---|
| Purpose | Planing, Thicknessing |
| Voltage | 240v |
