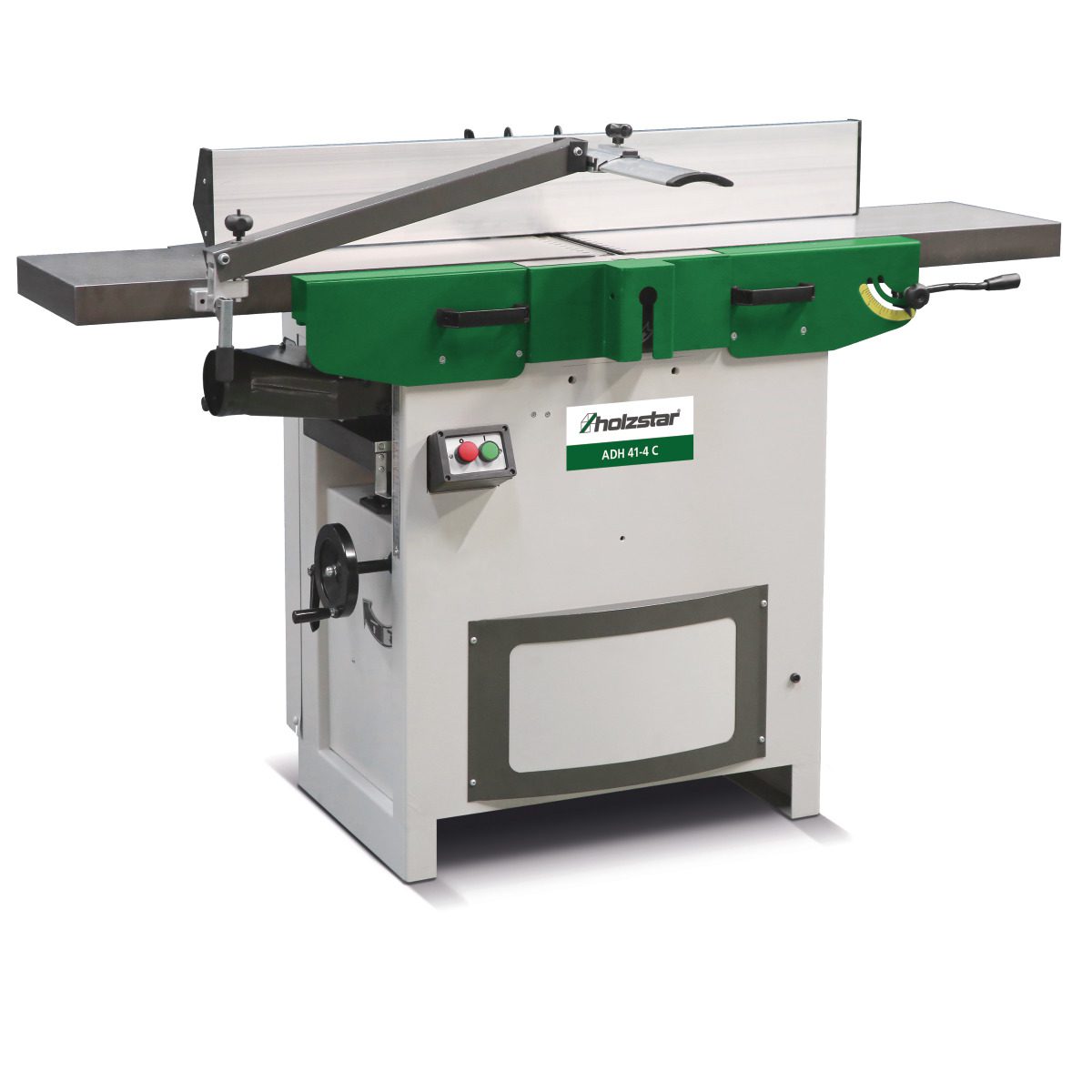

Holzstar ADH 41-4C 410x220mm Planer/Thicknesser 230V
Technical Details for Holzstar ADH 41-4C 410x220mm Planer/Thicknesser 230V
| Dimensions and weights | |
| Length approx. | 1680 mm |
| Width/depth approx. | 730 mm |
| Height approx. | 860 mm |
| Weight approx. | 334 kg |
| Electrical Data | |
| Drive motor output | 2,2 kW |
| Absorbed power drive motor | 3 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
| Extraction port diameter thickness | 100 mm |
| Extraction port diameter joints | 100 mm |
| Feed | |
| Speed | 6.5 m/min |
| Jointing | |
| Max. cutting depth | 3 mm |
| Planing stop pivoting range | 90 – 45 ° |
| Planing knife shaft | |
| Type | Strip planer blade shaft |
| Number of planing blades | 4 St |
| Speed | 4000 min¯¹ |
| Max. planing width | 410 mm |
| Thickness | |
| Working height min. | 5 mm |
| Working height max. | 220 mm |
| Max. cutting depth | 5 mm |
Description
Holzstar ADH 41-4C 410x220mm Planer/Thicknesser 230V
Holzstar ADH 41-4C 410x220mm Planer/Thicknesser 230V key features:
- For angular joining (90?) and precise planing of solid wood boards, planks and strips
- Automatic workpiece feed

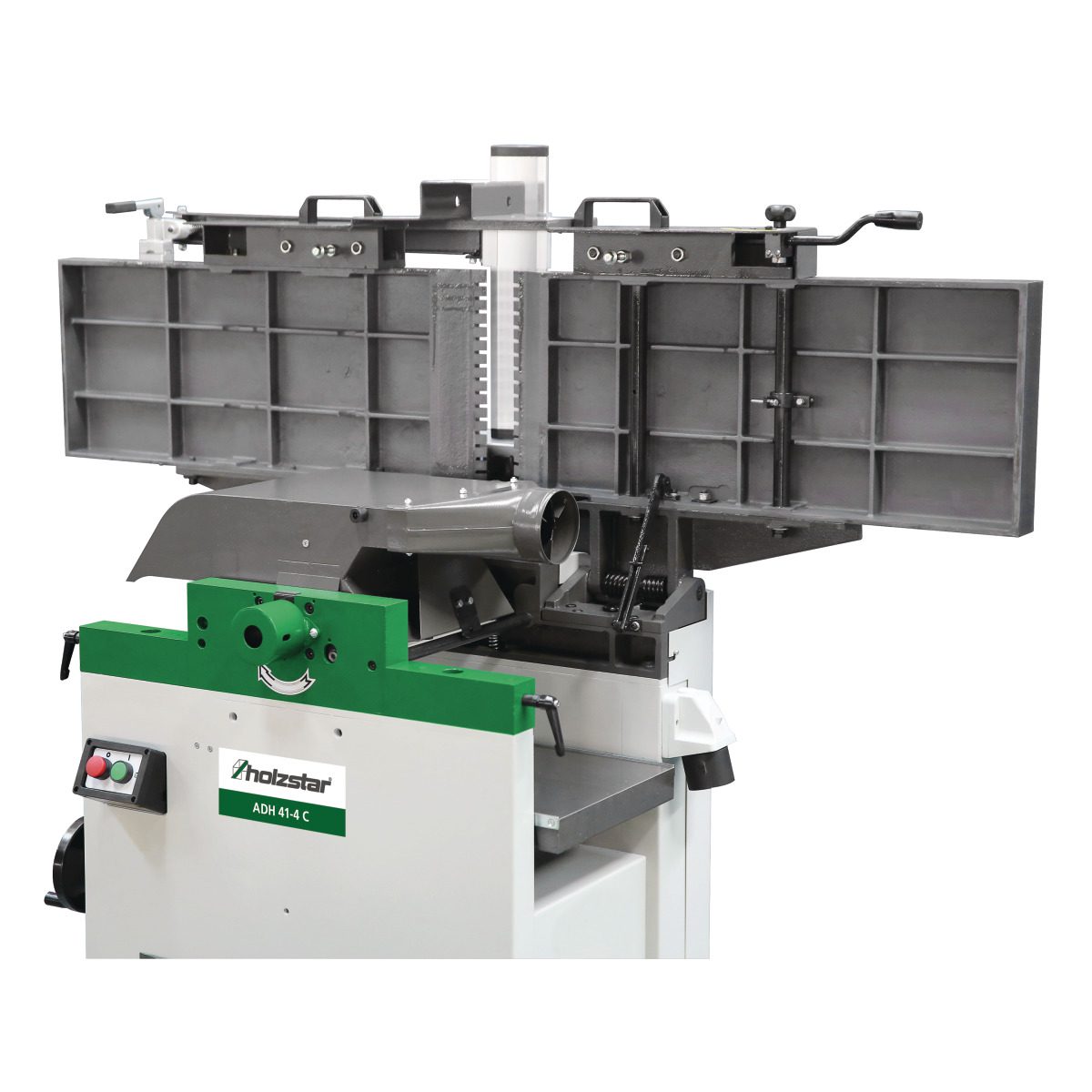

< li>Integrated, foldable swarf extraction hood
- Aluminum dressing stop that can be tilted comfortably by + 45?
- Simple and precise adjustment of the chip removal
- Large dimensioned dressing table made of ribbed aluminum die-cast
- Large thickness table made of gray cast iron with a polished surface
To read more about the brand, see their website here.
Additional information
| Area of use | Woodworking |
|---|---|
| Purpose | Planing, Thicknessing |
| Voltage | 415v |
